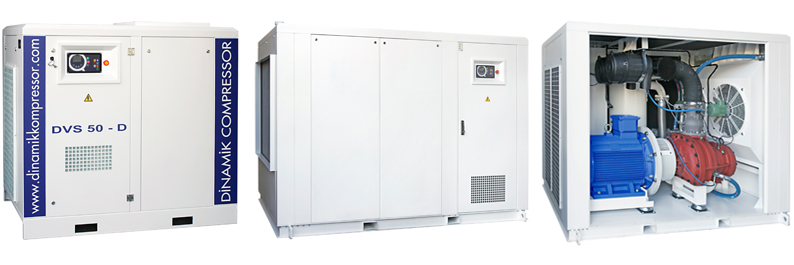

DVS Series Capacity Controlled

screw compressor

Influence your choice of screw compressor energy costs

The wrong air system design can increase your energy cost up to 4-5 time because of this; DVS Series Variable Speed Compressor one smart solution for your company.

compressor

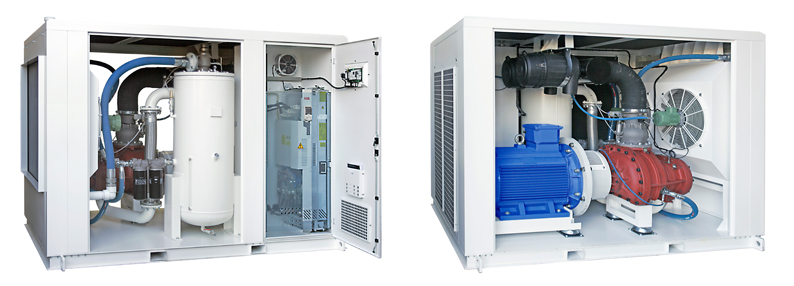

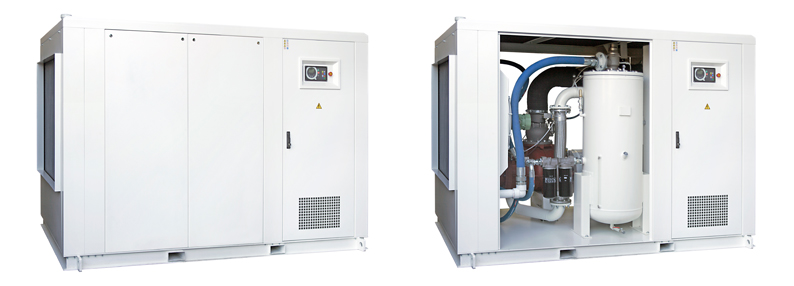

DVS Series Variable Speed Compressor One Smart Solution For Your Company

Variable speed compressors can efficiently and reliably handle the varying air demand found in most plant air systems. These compressors speed up and slow down to match air supply to air demand as it fluctuates. The right variable speed compressor in the right application delivers significant energy savings and a stable, consistent air supply.

compressor

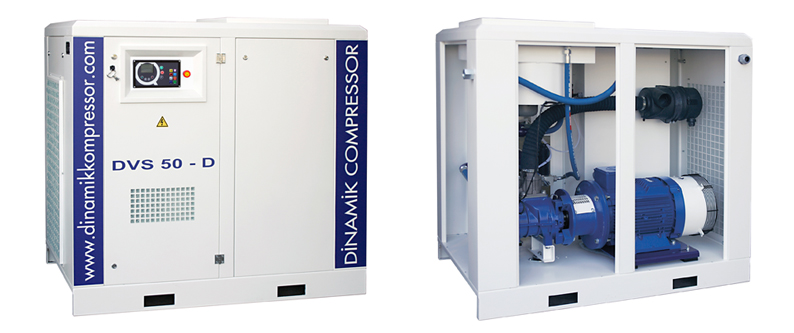

Advantages of the DVS Series

Efficient, Reliable, Capacity Controlled and Flawless

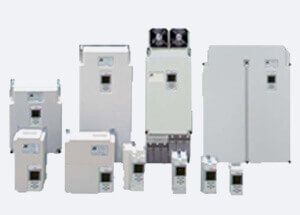

The DVS series compressors are your rational solution partner, launching a new approach for optimizing your air compressor needs. Compressors with frequency inverters have given this space a new dimension for operating efficiency and cost. Compared to other screw compressors this is more flexible. It manifests itself with constant pressure and maximum production efficiency. As a result, Compressors with DVS series frequency inverters are your reliable, efficient, 12 fault-free and economical investment.

compressor

The wrong air system design can increase your energy cost up to 4-5 time because of this;

DVS Series Variable Speed Compressor one smart solution for your company.

Variable speed compressors can efficiently and reliably handle the varying air demand found in most plant air systems. These compressors speed up and slow down to match air supply to air demand as it fluctuates. The right variable speed compressor in the right application delivers significant energy savings and a stable, consistent air supply.

compressor production

Models And Technical Information

  • Model
    Maximum Pressure
    • bar
    Capacity
    • m³ / min (dk)
    Engine Power
    • kw
    • hp
    Sound Level
    • db (a)
  • DVS 30
    7 ... 13
    1.5 ... 3.8
    • 22
    • 30
    72
  • DVS 40
    7 ... 13
    1.45 ... 5.2
    • 30
    • 40
    72
  • DVS 50
    7 ... 13
    1.75 ... 6.6
    • 37
    • 50
    72
  • DVS 60
    7 ... 13
    2.15 ... 7.9
    • 45
    • 60
    73
  • DVS 75
    7 ... 13
    2.75 ... 9.85
    • 55
    • 75
    74
  • DVS 100
    7 ... 13
    3.8 ... 13.5
    • 75
    • 100
    74
  • DVS 125
    7 ... 13
    4.5 ... 15.8
    • 90
    • 125
    76
  • DVS 150
    7 ... 13
    5.2 ... 18.8
    • 110
    • 150
    77
  • DVS 180
    7 ... 13
    6.5 ... 23.2
    • 132
    • 180
    77
  • DVS 220
    7 ... 13
    7.5 ... 27.9
    • 160
    • 220
    78
  • DVS 270
    7 ... 13
    9.8 ... 35.6
    • 200
    • 270
    78
  • DVS 270
    7 ... 13
    13 ... 44
    • 200
    • 270
    78
